Description

Automatic in-line tester platform for panelized or depanelized, assembled or semi assembled DUTs on pallet. Designed for integration into conveyor-based production lines.

This equipment supports seamless in-line operation, with automated DUT (Device Under Test) handling, electrical and pneumatic interfacing, and software-controlled testing sequences. It is able to perform a wide range of diagnostic procedures, including power measurement, communication protocol validation (e.g., CAN), barcode verification, and functional tests using an integrated set of high-end instruments.

It is fully equipped for integration with Manufacturing Execution Systems (MES), enabling real-time data exchange between the test station and the central production control infrastructure.

Features and Benefits

Single stage, dual stage and double sided contacting.

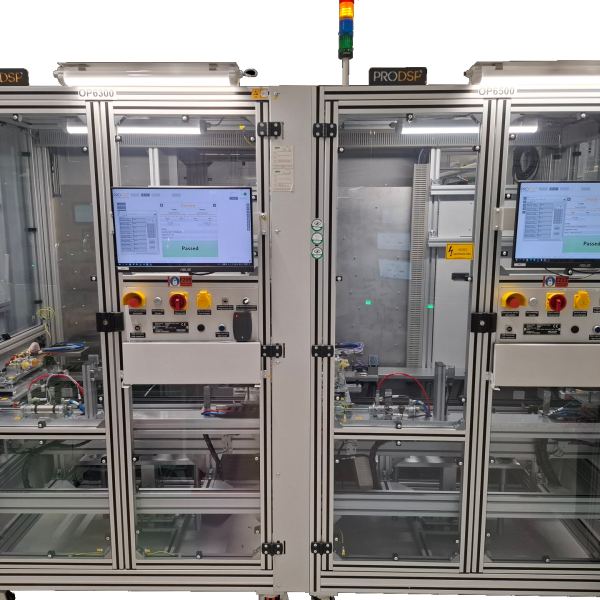

Optimized footprint for parallel testing (as shown in the picture).
Flexible in-line solution, optimal for mass testing: Compatibility with multiple pallet sizes and DUTs.
Easy manual fixture exchange.
19” mounting space.
Easily integration into the production line by Bosch TS2+ system.
TS2+ pallet transfer system with stoppers and pallet lift.
Optional lower conveyor for empty pallet transfer to the start point of the line.
BYPASS mode when station testing the other DUT.
3-side contacting included in the base setup /TOP, FRONT, REAR /
Optional upgrade for other directions /BACK, LEFT, RIGHT/
